How To Make The Big Darth Vader Wood Stove

Everyone has seen the videos online of the Darth Vader wood stove, probably a million times. Well ladies and gentlemen, here is how to build it. After this check out how to make a log cabin for less than 500 bucks.

You can get more details about this build HERE.



Step 1 – Marking It Out.

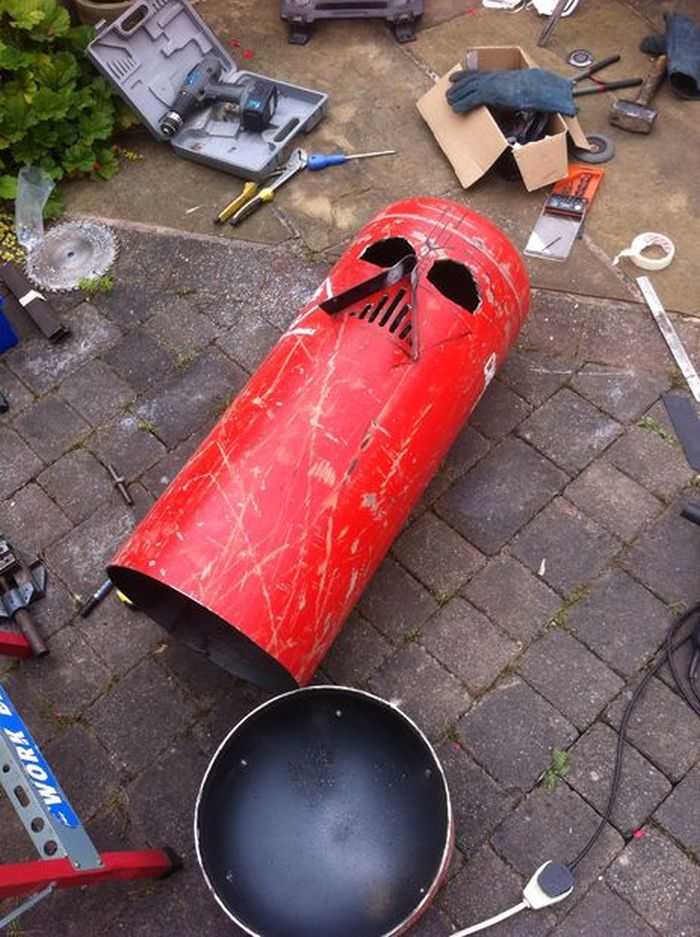

How To Make The Big Bad Vader Log Burner Pictures 002

“I magic marketed the face and cut the details out using my drill, 10mm bit and angle grinder with 1.2mm blade…I used a few of these!!

The plan was to cut the bottom off and use the lower section of the cylinder for the hood of the helmet.”

Step 2 – Mouth Detailing

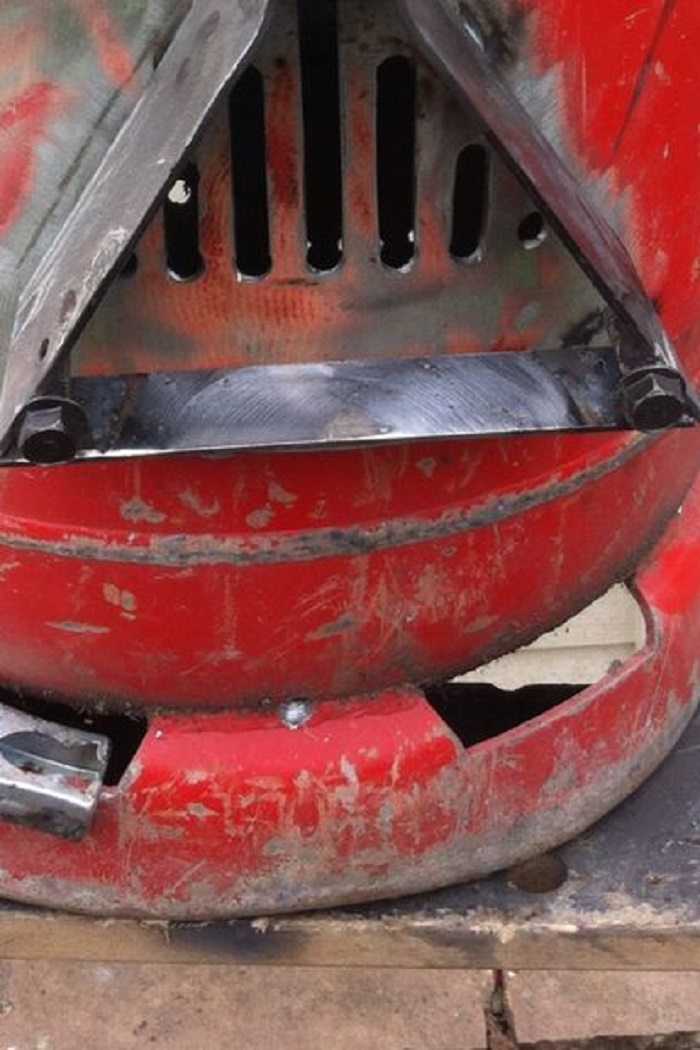

How To Make The Big Bad Vader Log Burner Pictures 010

“I welded two bolts into the corner of the triangle to add styling.”

Step 3 – The Hinge.

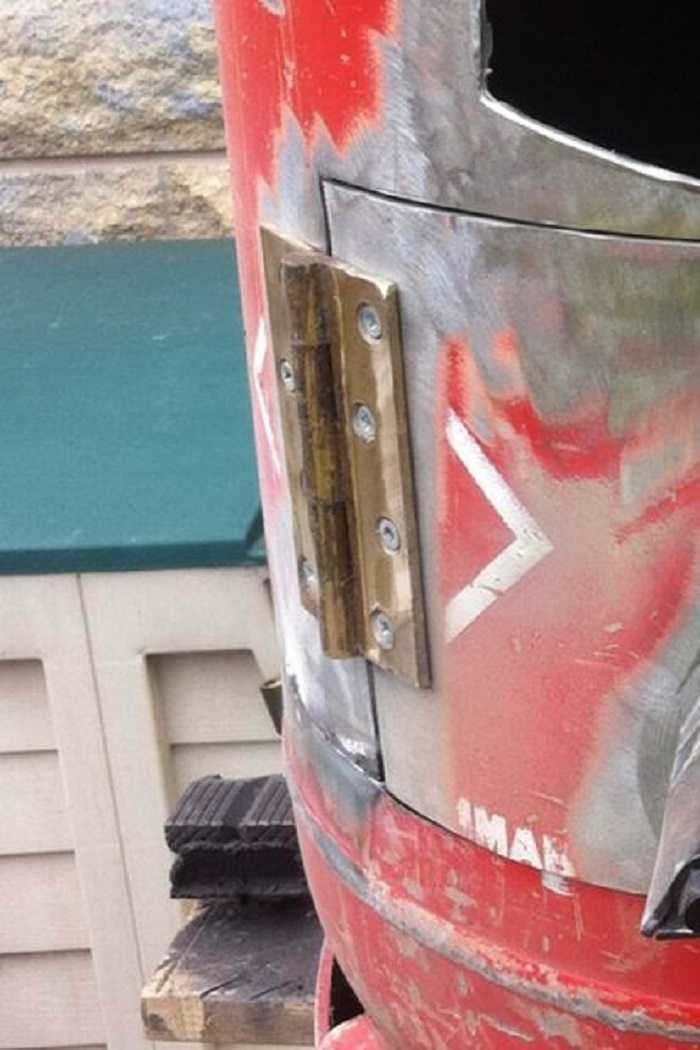

How To Make The Big Bad Vader Log Burner Pictures 011

“I always fit the hinge before cutting the door so I know it’ll always hang straight.

Mark out using a marker pen, drill 3mm hole and tap using a 4mm tapping wrench. The hinge is fitted with 4mm x 10mm machine screws.”

Step 4 – The Bridges.

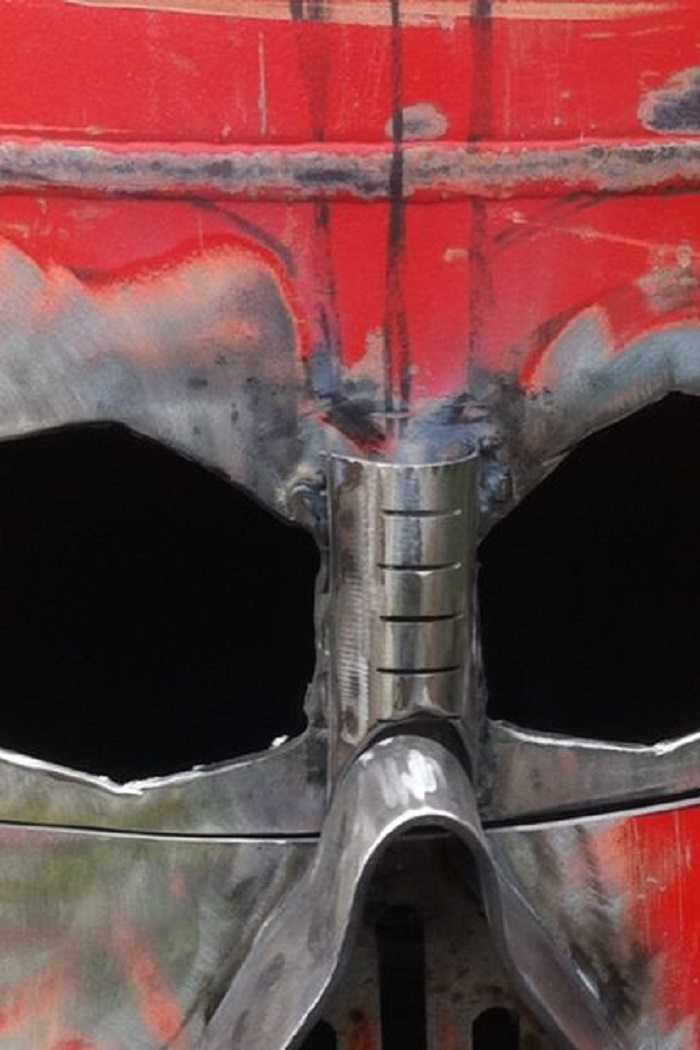

How To Make The Big Bad Vader Log Burner Pictures 012

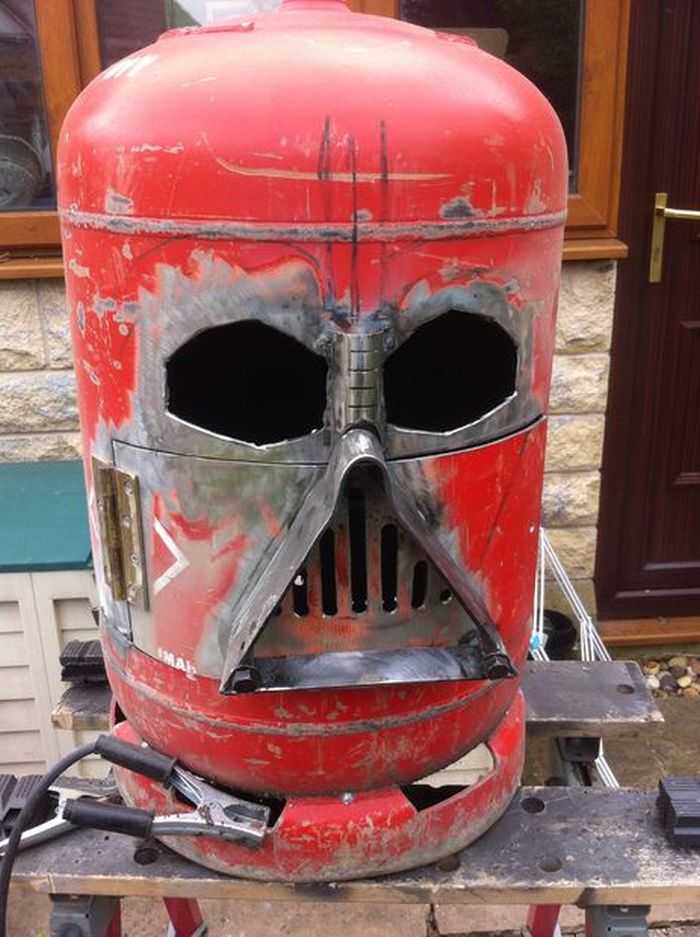

How To Make The Big Bad Vader Log Burner Pictures 009

“One the bridge of the nose I welded a tube which I had split and cut creating more detailing.”

Step 5 – Thermal Exhaust Ports.

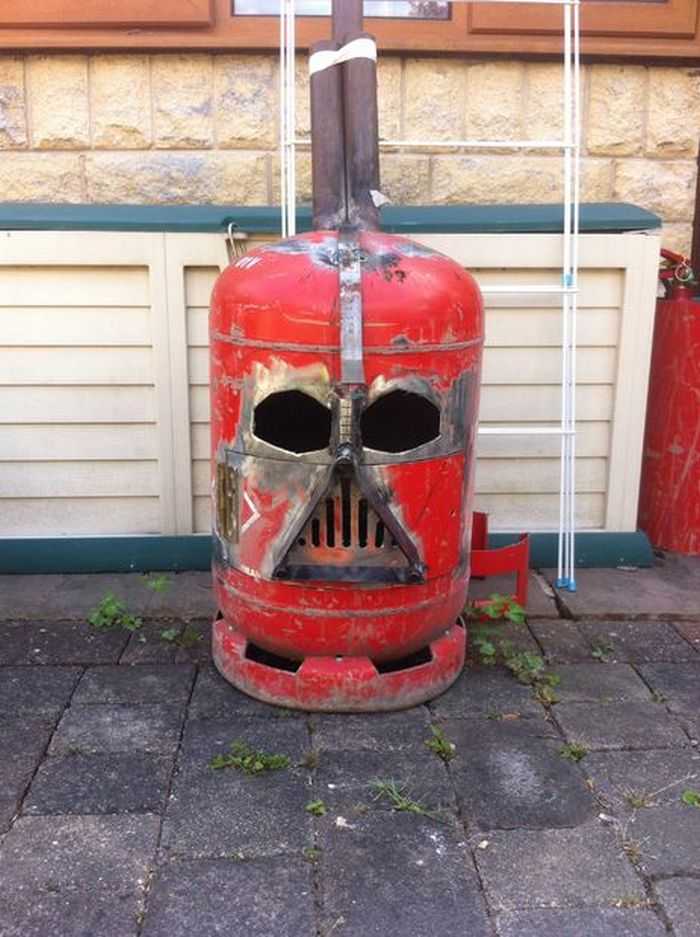

How To Make The Big Bad Vader Log Burner Pictures 007

“I was running low on scrap buys of metal and with school out for the summer I had to improvise.

My first design used 3 scaffolding tubes welded together but I thought is sucked so ended up cutting them off and going with a 6 tier exhaust which I’m much happier with.”

Step 6 – Weld And Grind.

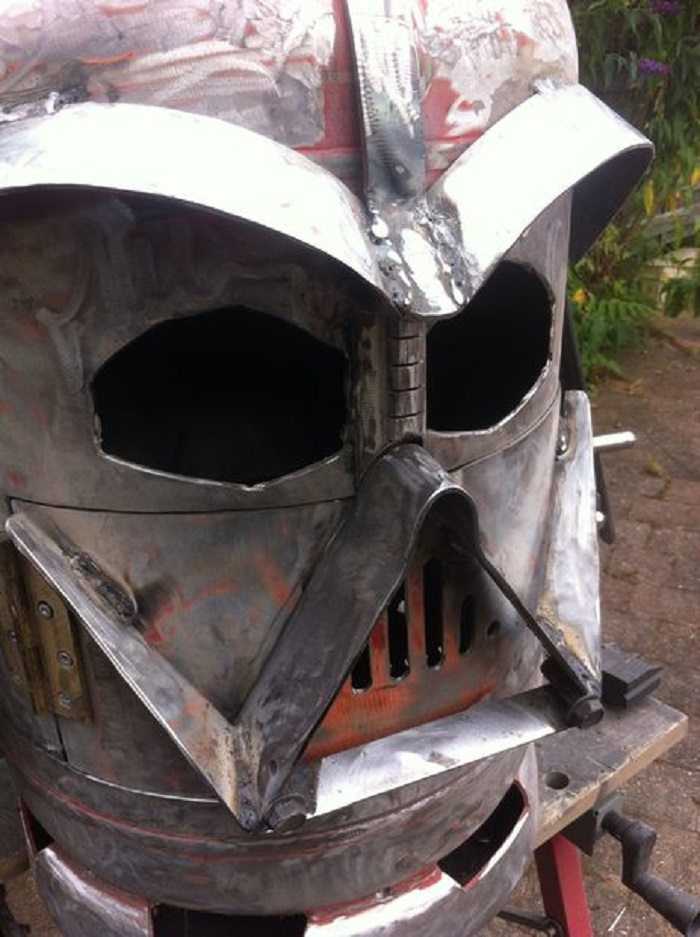

How To Make The Big Bad Vader Log Burner Pictures 013

“The eyebrow pieces, Cheek detailing and handle are made from the left over cylinder. I also used a large section of the cylinder to create vaders hood.

Once welded I used a flap wheel fitted to my grinder to smooth all rough edges and strip the paint.”

Make Your Own Funny Memes Here!



TFB Trending Posts


How To Make The Big Bad Vader Log Burner Pictures 001

Step 7 – Daddy Vader.

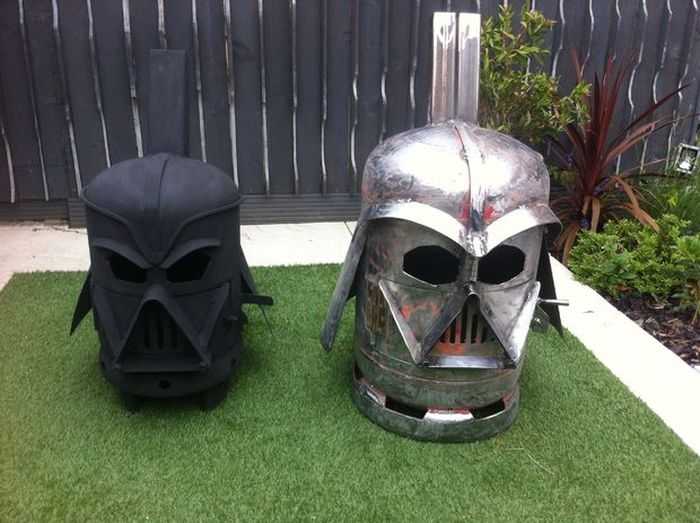

How To Make The Big Bad Vader Log Burner Pictures 006

At the side of a regular sized gas bottle you can see the big vader towers over my previous design.

The original is a 13 or 15kg gas bottle, the big one I think was a 46kg.”

Step 8 – Burn Vader Burn.

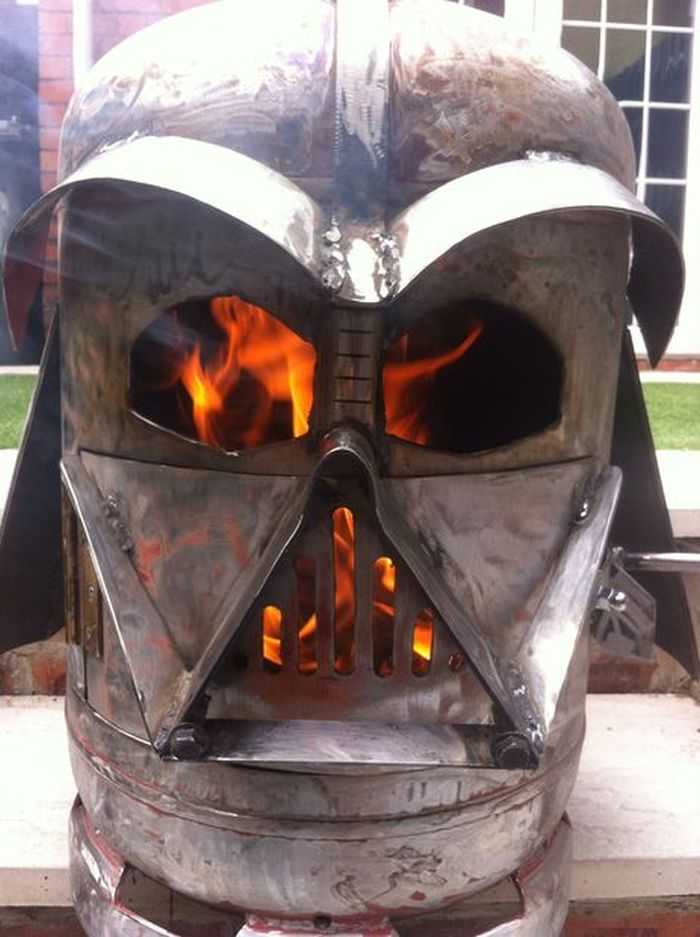

How To Make The Big Bad Vader Log Burner Pictures 004

“Before painting with UHT paint I decided to give is a test burn, this will also burn off any of the remaining original paint.”

Step 9 – Matt Black.

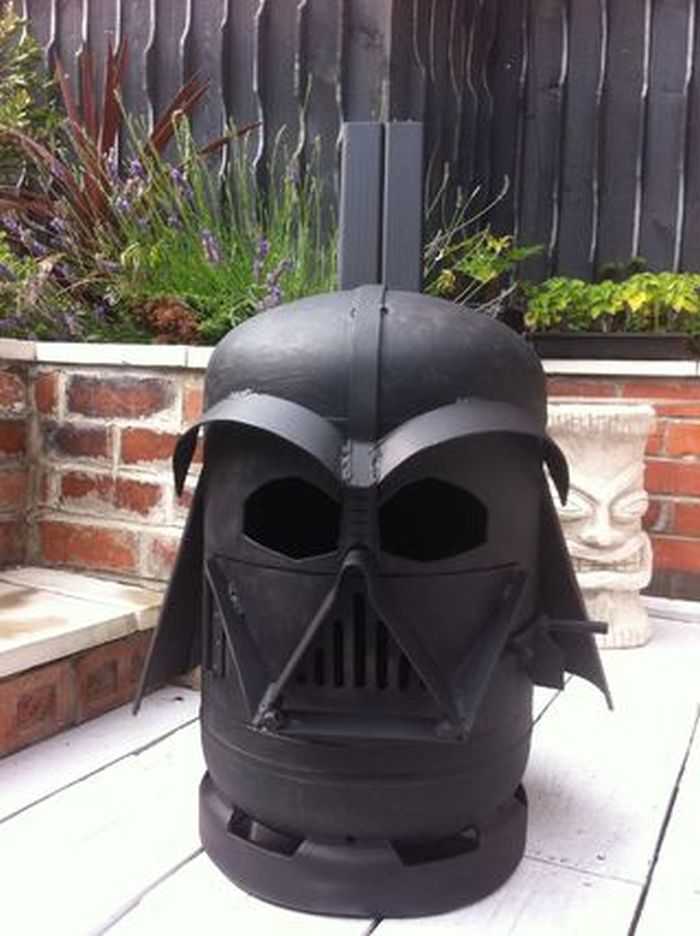

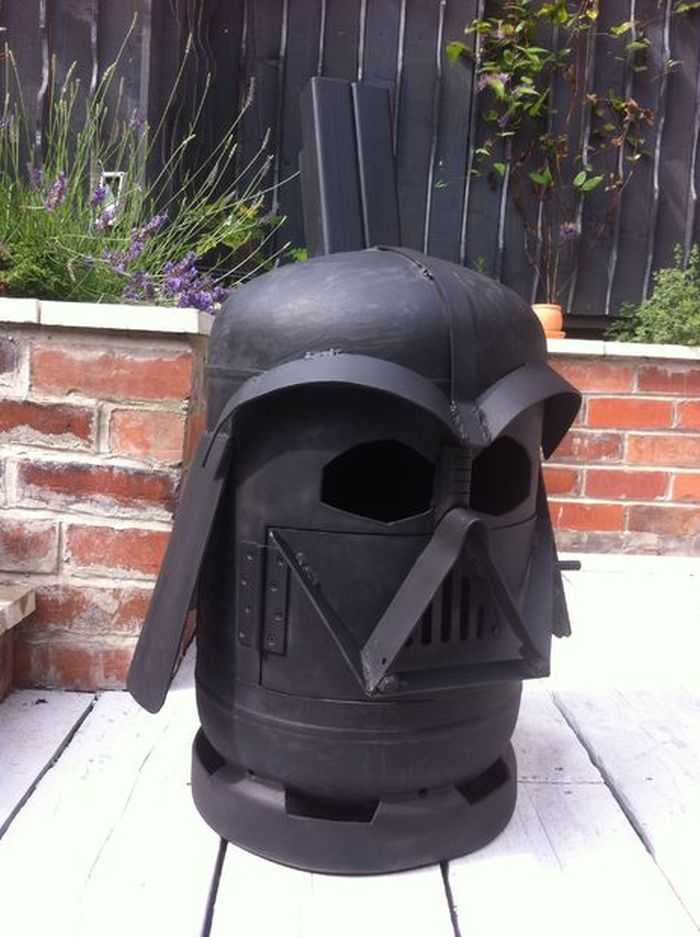

How To Make The Big Bad Vader Log Burner Pictures 005 How To Make The Big Bad Vader Log Burner Pictures 008





“I gave vader 2 coats of UHT black paint and it’s good to go.”

This was built by doddieszoomer and the entire build can be seen HERE
